DS5000 Sound and Vibration Analysis System
with O Solution Software
Precision Sound and Vibration Measurement for Cars, Machinery & Equipment
The DS-5000 Sound & Vibration Analyser, combined with O-Solution Software, delivers high-precision measurement and analysis across a wide range of applications. Whether in the lab or out in the field, this system helps identify and solve noise and vibration issues in vehicles, household appliances, industrial equipment, and more.
Key Features:
Comprehensive Sound & Vibration Analysis
Capture and analyse sound and vibration data in real time from a variety of sources, including:
- Automobiles
- Home appliances
- Industrial machinery
- R&D environments and field testing
Flexible & Expandable System
- Modular stack structure supports from 3 to 48 channels per unit
- Connect up to 5 units for multi-channel measurements
- Two input unit types with 40 kHz and 100 kHz frequency ranges
High-Speed Communication & Wide Measurement Range
Accurate data collection at high speeds, ideal for complex testing scenarios.
Ready for Any Environment
- Battery-powered for indoor and outdoor use
- Channel isolation eliminates external electrical noise and ground loop interference
- Lightweight and easy to carry
- Simple cable connections for quick setup
Advanced Analysis Capabilities:
Natural Frequency & Damping Ratio Measurement
Use an impulse hammer or shaker to measure frequency response and identify the natural vibration characteristics of mechanical structures. The system also calculates the damping ratio using methods such as the half-power method or Hilbert transform.
Motor Noise Frequency Band Identification
Easily isolate abnormal sounds in motors by applying IIR or FIR filters to recorded data. Listen to the filtered signals to quickly pinpoint problematic frequency bands for effective noise reduction.
Rotating Object Tracking Analysis
Track and analyse sound and vibration from rotating components (e.g., motors, generators, transmissions). The O-Solution software supports:
- Constant-width and constant-ratio tracking
- Carrier noise tracking using inverter switching signals
- Detection of specific rotational speeds that increase order components
Real-Time Bearing Error Detection
Detect abnormal vibrations in bearing parts with time-axis preprocessing and multi-frequency FFT analysis. Identify damage-induced variable components in real time to prevent equipment failure.
Your All-in-One Measurement Solution
With its powerful features, portability, and expandability, the DS-5000 and O-Solution software provide everything you need for accurate, efficient, and flexible sound and vibration analysis.
Discover the source of noise - Pinpoint the cause of vibration - Solve it with DS-5000
The O Solution Software

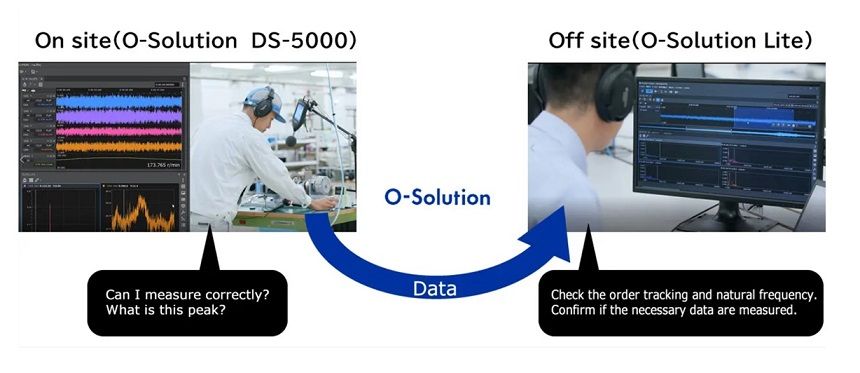

The O Solution software allows smooth mode switching between measurement and analysis. You can quickly check the result in analysis mode after the measurement. The data processing functions can be combined with options to suit your needs i.e. link with other devices using the external control function, share data with anyone, anywhere.
Display waveform immediately after system startup:
The time waveform will be displayed immediately after system startup simply by pressing the play button. You take measurements while monitoring the time waveform for 10 seconds.
Analyse efficiently and smoothly:
Huge amounts of recorded data can be processed at high-speed.
Supports other formats:
The different sampling frequency data (10 μHz to 100 GHz) such as sound, vibration, torque, torsion and revolution can be displayed together and overlaid on the screen. Data recorded by data loggers can be downloaded and read.
